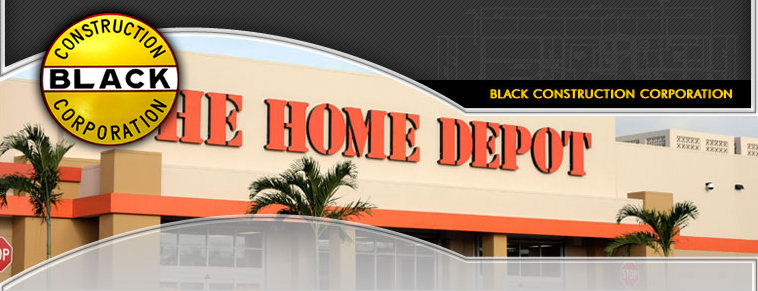

The Home Depot #1710 – Guam
Black Construction Corporations’ contracted scope with THE HOME DEPOT, USA included the following features:
- 156,000 SF building materials/retail shopping building.
- 400,000 gallon cast in place concrete reservoir for domestic/fire sprinkler water.
- Site improvements including a 660 space asphalt paved parking lot.
- Highway improvements including storm water drainage, road widening, box culvert bridge, signalized entrance and repaving.
- Utility improvements including electrical distribution, water, sewer, and storm-water collection and detention systems.
*Type of Construction: The overall structure was designed for Guam’s unique locale requirements which require the need for structures to sustain typhoon strength winds in excess of 175 mph and the seismic 4 requirements for potentially severe earthquake events. Constructed on granular fill, the continuous spread footings foundations support 10” thick tilt-up precast walls. The 6” ground slabs were placed to near “super-flat” standards. The roof steel joist open web structure is supported by steel columns and beams and the metal decking is topped with a 5” structural concrete topping w/ urethane roofing membrane. The building is finished with integral color EFS.
Guam Contractors’ Association 2007 Excellence in Construction Awards
Commercial $5 to $10 million Category Winner
